C Section Side Rails

Galvanised steel C section rails Click an image to enlarge.

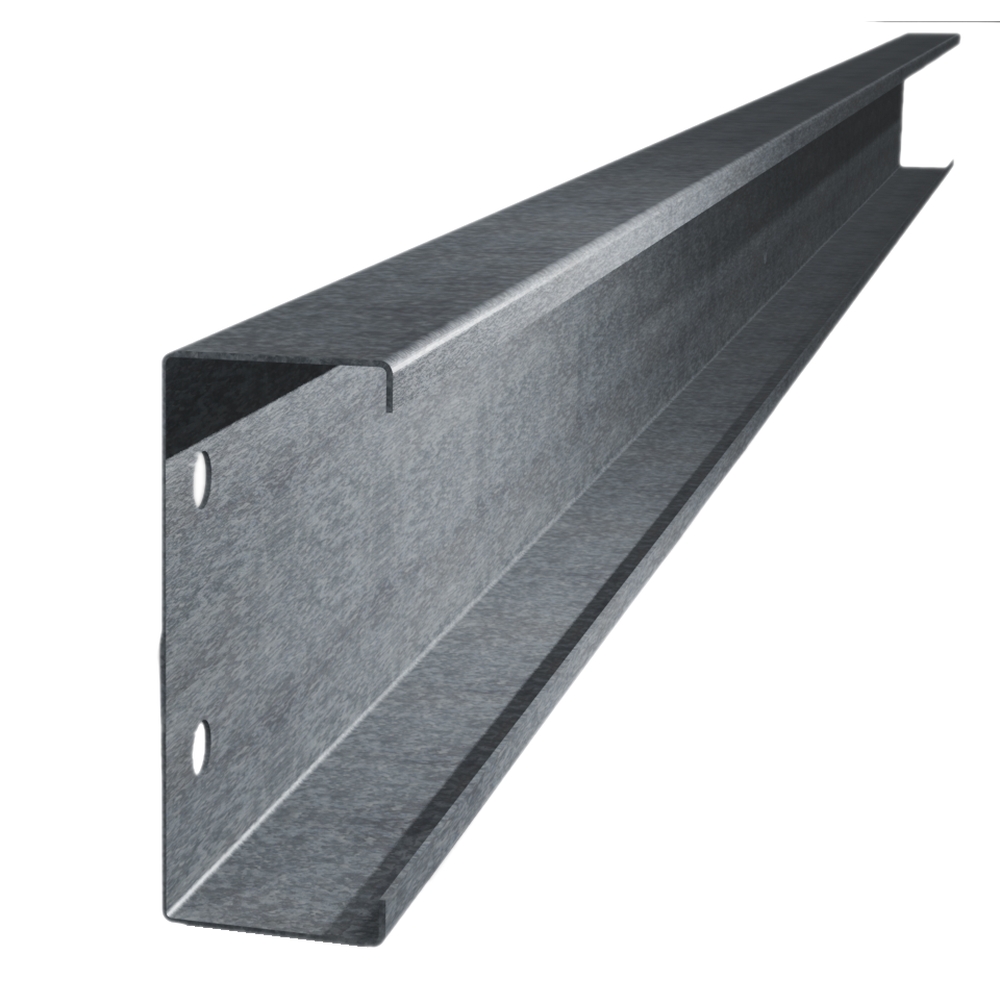

Cee Section
G275 Z39 Galvanised Steel
To order online or obtain a quotation please specify your requirements below and add to basket.
Due to nationwide galvanised steel shortages current estimated manufacturing lead time for this product is approx 8-10 weeks. As such our normal estimated lead times as quoted in the checkout will not apply to this product.
Please select your Height:
Please select your Gauge:
Punching details

Enter your purlin quantities and lengths

Number of purlinsPurlin length (m)
Unsure about your sizes? Please contact us
Sorry you can not order online as JavaScript is not enabled in your browser.

Additional information

Please select a tab below for further information:

Pricing

Product description Unit of Measure Unit Price
C-Sections 140mm 1.6mm gauge - Galvanised LM £11.17+VAT
(£13.40 inc VAT)
C-Sections 140mm 1.8mm gauge - Galvanised LM £12.57+VAT
(£15.08 inc VAT)
C-Sections 140mm 2.0mm gauge - Galvanised LM £13.54+VAT
(£16.25 inc VAT)
C-Sections 175mm 1.6mm gauge - Galvanised LM £12.44+VAT
(£14.93 inc VAT)
C-Sections 175mm 1.8mm gauge - Galvanised LM £14.13+VAT
(£16.96 inc VAT)
C-Sections 175mm 2.0mm gauge - Galvanised LM £15.26+VAT
(£18.31 inc VAT)
C-Section 200mm 1.6mm gauge - Galvanised LM £12.96+VAT
(£15.55 inc VAT)
C-Section 200mm 1.8mm gauge - Galvanised LM £14.72+VAT
(£17.66 inc VAT)
C-Section 200mm 2.0mm gauge - Galvanised LM £16.43+VAT
(£19.72 inc VAT)

(Prices do not include delivery)

Product Data

Our cee sections are manufactured from pre hot dipped galvanised steel coated to G275 Z39 providing a minimum yield of 390N/mm2

HeightTop FlangeBottom FlangeTop LipBottom Lip
140mm 60mm 60mm 15mm(min)* 15mm(min)*
175mm 70mm 70mm 15mm(min)* 15mm(min)*
200mm 70mm 70mm 15mm(min)* 15mm(min)*
*Lip sizes can change based on coil width.

Manufactured to length

*Please consult a structural engineer to select the correct size of purlin, suitable for your spans.

Typical properties

PropertyUnit of measureValueTest standard
Standard zinc coating (g/m2) 275 (G275)
Minimum yield stress (N/mm2) 450 EN 10147:2000

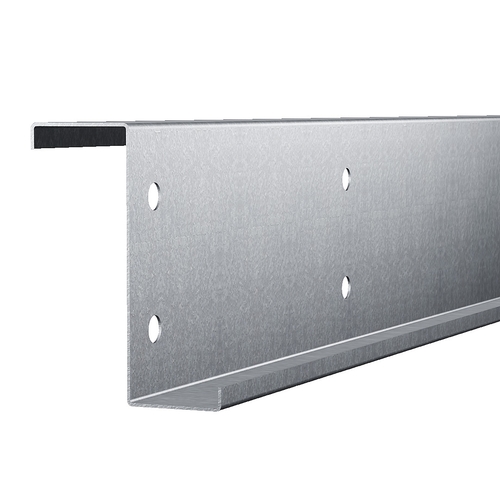

Z Purlin Punching Details Single Span

Z Purlin Punching Details Single Span LO

Z Purlin Punching Details Single Span RO

Z Purlin Punching Details Single Span LRO

Z Purlin Punching Details Double Span
