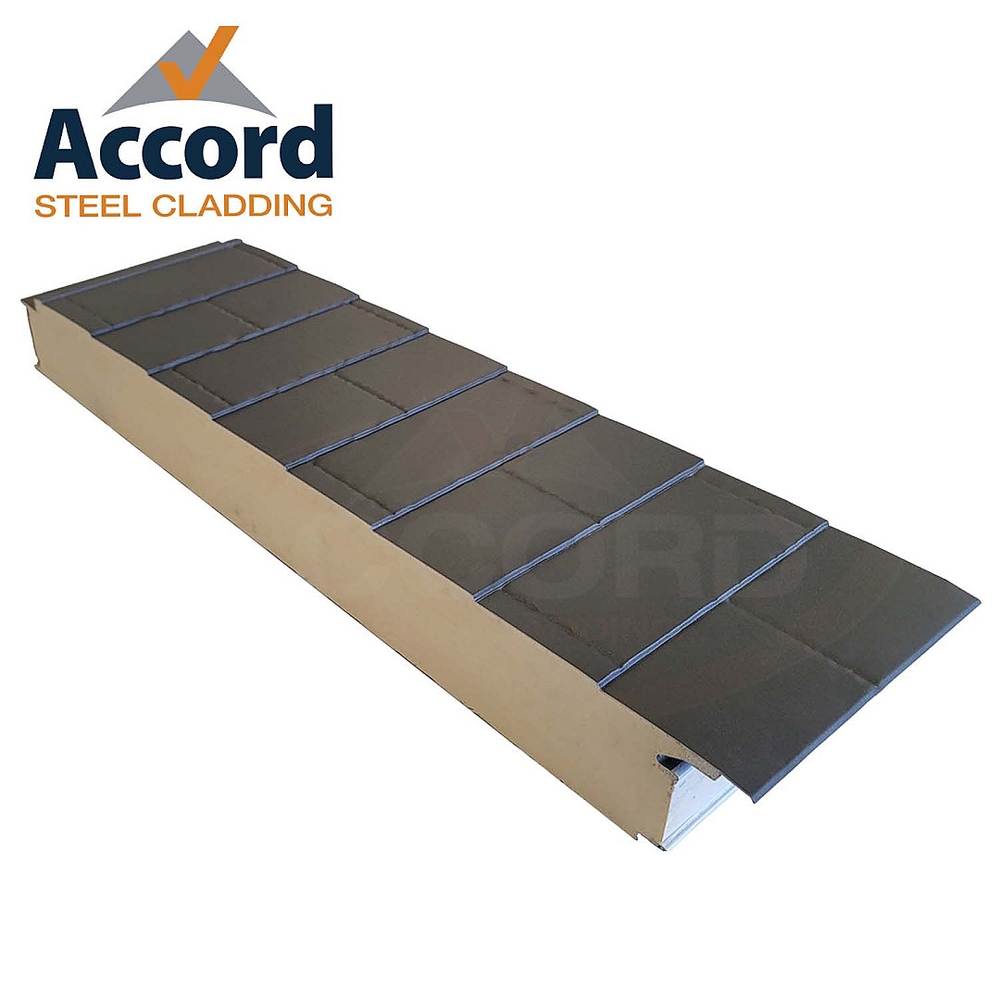

An insulated Slate Effect Metal Composite panel with a PIR foam core.
The secret-fix design of this roof panel provides hidden fixation for a seamless transition between the panels, which results in a superbly smooth roof aesthetic.
| Core Thickness (mm) | Price /m²* | Weight (kg/m²) | U-Value (W/m²K) |
|---|---|---|---|
| 60mm | £57.85+VAT | 10.44 | 0.39 |
| 120mm | £72.64+VAT | 12.72 | 0.19 |
*Price is for the panels only and does not include the ancillary items or delivery costs. Please email sales@steelroofsheets.co.uk for a full quotation for your project.
| Property | Value |
|---|---|
| Slope Coverage | 1.000m |
| Minimum Width | 2.500m |
| Maximum Width | 10.000m |
| Width Increments | 0.500m |
| External Coating | Texutred Paint RAL 7024 (40μ) 0.5mm Coated Steel |
| Insulation Core | Polyisocyanurate (PIR) foam |
| Internal Coating | White Liner RAL 9002 (15μ) 0.4mm Coated Steel |
| Fire classification | B-s2,d0 (BS EN 13501-1) |
| Minimum Roof Slope | 25° |
| Purlin Spacing | 1500mm |
| Tile Size | 125mm x 250mm |
| Lay | Horizontal |
| Fixing Method | Secret Fix - Tek screws hidden under lapping detail. |
