JI 1000ROOF Insulated Composite Panels

JIROOF 1000 Composite Steel Cladding Sheets

Click an image to enlarge.

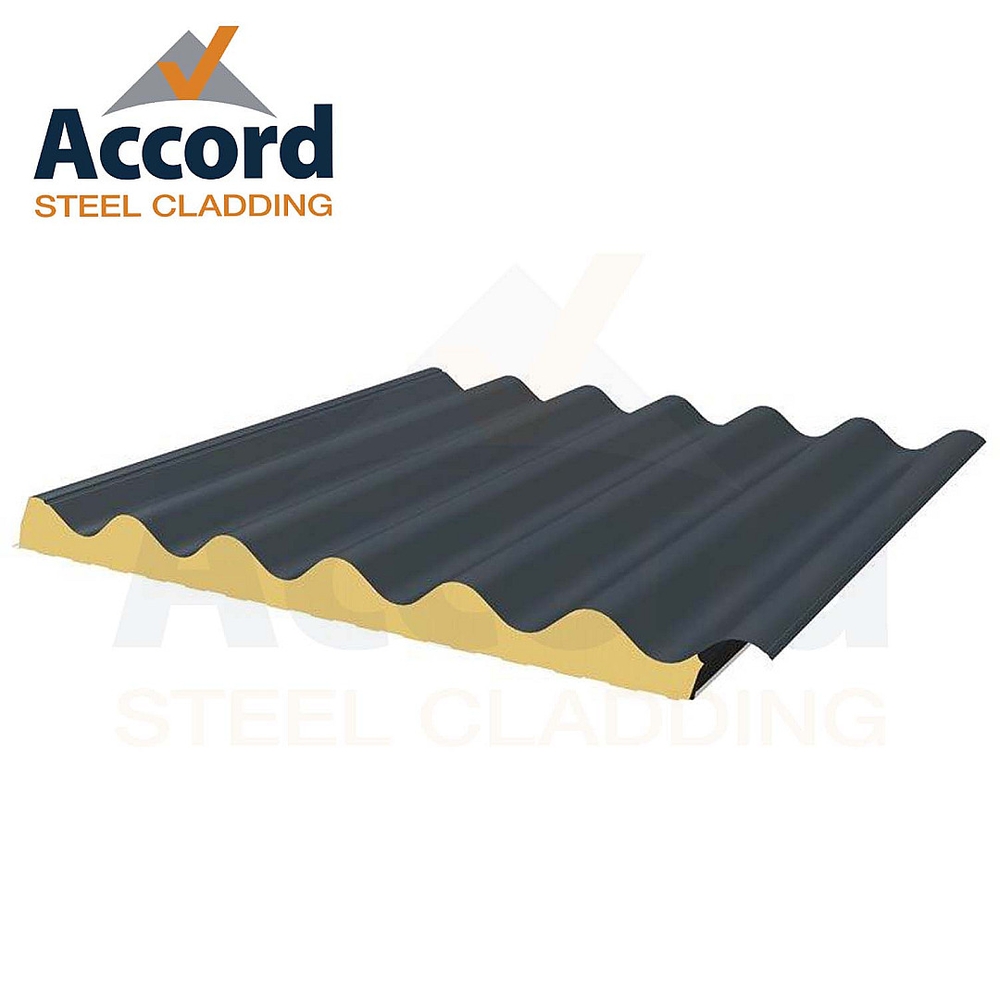

JI 1000ROOF Composite Panels
PVC Plastisol coated galvanised steel

A composite panel is a simple sandwich of a metal profile outer sheet, insulation filler and an internal liner. Insulated composite panels are an ideal one stop solution to insulate and clad your building.

We offer JI1000 ROOF composite cladding manufactured to your specification delivered direct from manufacturing.

JI1000 ROOF is available in core panel thickness of 40mm to 150mm with U values ranging from 0.46W/m²K to 0.14W/m²K

Unsure about your sheet sizes? Please contact us to discuss your requirements

Additional information

Please select a tab below for further information:

Product data
Colours

Pricing

Due to material shortages this product is price on application only. Please call us on 01384 273811 to request a price.

Approx lead time: 8 to 10 weeks

*** For Stock Sheets please click here ***

Thickness (d)	Under 250m^2*	250m² to 500m^2*	500m² to 1000m^2*	over 1000m^2*
40mm core	£29.65 per m²	£27.40 per m²	£26.33 per m²	£25.75 per m²
60mm core	£31.50 per m²	£29.14 per m²	£28.00 per m²	£27.00 per m²
80mm core	£33.58 per m²	£31.06 per m²	£29.87 per m²	£28.82 per m²
100mm core	£36.50 per m²	£33.80 per m²	£32.52 per m²	£31.38 per m²
120mm core	£41.00 per m²	£38.00 per m²	£36.58 per m²	£35.32 per m²
150mm core	£49.15 per m²	£45.60 per m²	£43.94 per m²	£42.44 per m²

Product data

We offer JI Roof 1000 composite cladding manufactured to your specification delivered direct from manufacturing.

JI Roof 1000 insulated panels offer a maximum cover width of 1000mm and are suitable for use on roofs with a pitch of 4° or more (after deflection)

Profile: JI1000ROOF

Cover width: 1000mm

Profile height: 45mm

Pitch: 333mm

Manufactured to size

Thickness (d)	U-Value W/m²K	Weight (Kg/m²)	Min Length	Max Length	Rw (C;Ctr)
40mm core	0.46	11.71	2.000m + Cutback	12.000m	24dB (-2;-4)
60mm core	0.35	12.51	1.900m + Cutback	12.000m	24dB (-1;-4)
80mm core	0.25	13.30	1.800m + Cutback	12.000m	25dB (-2;-4)
100mm core	0.20	14.10	1.800m + Cutback	12.000m	26dB (-2;-5)
120mm core	0.16	14.98	1.800m + Cutback	12.000m	26dB (-2;-4)
150mm core	0.14	16.09	1.800m + Cutback	12.000m	27dB (-2;-5)

Advantages of composite panels

Composite roof and wall cladding offer you significant advantages over conventional site assembled systems, such as:

Fast, single fix installation
Reliable thermal performance
Insulation continuity
Minimal air leakage
Elimination of cavity condensation and cold bridging

Applications

Composite cladding can be used in a wide variety of applications including:

Sheds and garages
Warehouses
Industrial and Commercial units
Schools
Agricultural units
Equestrian buildings

Please ensure that you are ordering the correct profile, this product is non standard and manufactured to order so therefore cannot be returned if ordered incorrectly.

Colour chart

Standard Colours:

Juniper Green BS12B29	Merlin Grey BS18B25	Goosewing Grey BS10A05	Slate Blue BS18B29
Non-Standard Colours:

Olive Green* BS12B27	Black* BS00E53	Anthracite* RAL 7016	Vandyke Brown* BS08B29

Terracotta* BS04C39	White* BS00E55	Heritage Green* RAL6002	Sargasso Blue* RAL5003

Ocean Blue* BS18C39	Albatross* BS18B17	Hamlet* RAL9002	Mushroom* BS10B19

*Non standard colours only available in HPS Ultra - prices available on application

Please note: All colours shown are web representations. Although we make every effort to show our products in their original colours, due to photography and individual monitors, actual colours may vary.
