Kingspan KS1000RW QuadCore Insulated Composite Panels

KS1000RW QuadCore Insulated Steel Cladding Click an image to enlarge.
Kingspan KS1000RW QuadCore™
Composite Panels PVC Plastisol
coated galvanised steel

We have added Kingspan Quadcore™ options to our range of insulated cladding panels. QuadCore technology offers superior thermal

A composite panel is a simple sandwich of a metal profile outer sheet, insulation filler and an internal liner. Insulated composite steel panels are an ideal one stop solution to insulate and clad your building.

We offer Kingspan KS1000RW QuadCore™ composite cladding manufactured to your specification delivered direct from manufacturing.

Kingspan KS1000RW is available in core panel thickness of 40mm to 150mm with U values ranging from 0.47W/m2K to 0.12W/m2K

Unsure about your sheet sizes? Please contact us to discuss your requirements

Additional information

Please select a tab below for further information:

Online Quote

To order online or obtain a quotation please specify your requirements below and add to basket.
Please select your top coat:
Please select your core thickness:
Please select your fixings:

Enter your sheet quantities and sizes

Number of sheetsSheet length (m)Cutback(mm)Overlap on
Unsure about your sheet sizes? contact us

Pricing

Prices listed below exclude VAT and delivery

Thickness (d)Under 51m2**51m2 to 101m2**101m2 to 501m2**over 501m2**
40mm core £47.96 per m2 £45.72 per m2 £43.66 per m2
£41.73 per m2
53mm core £48.94 per m2 £46.67 per m2 £44.56 per m2 £42.61 per m2
60mm core £49.79 per m2 £47.50 per m2 £45.36 per m2 £43.38 per m2
73mm core £51.51 per m2 £49.15 per m2 £46.96 per m2 £44.92 per m2
80mm core £53.11 per m2 £50.69 per m2 £48.43 per m2 £46.35 per m2
91mm core £55.50 per m2 £53.00 per m2 £50.66 per m2 £48.49 per m2
100mm core £57.88 per m2 £55.29 per m2 £52.88 per m2 £50.63 per m2
115mm core £62.67 per m2 £59.89 per m2 £57.32 per m2 £54.92 per m2
120mm core £65.97 per m2 £63.07 per m2 £60.39 per m2 £53.50 per m2
137mm core £69.34 per m2 £66.78 per m2 £63.95 per m2 £61.32 per m2
150mm core £73.48 per m2 £70.30 per m2 £67.36 per m2 £64.61 per m2
**m2 is based on full 1m coverage on sheets. For a full comprehensive quote please contact us with your measurements.

Kingspan Panel Delivery Rates:
0-150m² - £230.00+VAT
150-400m² - £150.00+VAT
Over 400m² - No extra charge

Product data

A composite panel is a simple sandwich of a metal profile outer sheet, insulation filler and an internal liner. Insulated composite panels are an ideal one stop solution to insulate and clad your building.

We offer Kingspan KS1000RW QuadCore™ composite cladding manufactured to your specification delivered direct from manufacturing.

KS1000RW QuadCore™ insulated panels offer a maximum cover width of 1000mm and are suitable for use on roofs with a pitch of 4° or more (after deflection)

Profile: Kingspan KS1000RW

Cover width: 1000mm

Profile height: 35mm

Pitch: 333mm

Manufactured to size

Approx lead time: 4-6 weeks

QuadCore™ insulation technolgy

QuadCore™ closed cell insulation technology is unequivocally guaranteed to perform to its specified thermal performance for 40 years*. Unlike some insulation materials, it is not subject to degredation of thermal performance over time due to moisture ingress caused by poor weather or damage to the building structure over time.

* When used in conjunction with stainless steel long life fixing systems.

QuadCore insulation technology benefits

  • Thermal Safe - QuadCore™ is guaranteed to retain its specified thermal performance for 40 years, even exposed to water during installation.
  • Eco Safe - QuadCore™ is a RedList Free core in an insulated panel with low global warming potential, with third party verified EN 15804 EPDs on EcoPlatform and Greenbooklive.
  • Fire Safe - QuadCore™ is insurer approved to FM and LPCB standards and protects against spread of fire.
  • Fibre Free - QuadCore™ is non sensitising (does not cause skin irritation when handled) and non-hazardous.
  • 100% Renewable Energy - QuadCore™ is manufactured in factories with 100% renewable energy including on site generated solar and wind energy.
  • Elimination of cavity condensation and cold bridging

Advantages of composite panels

Composite roof and wall cladding offer you significant advantages over conventional site assembled systems, such as:

  • Fast, single fix installation
  • Reliable thermal performance
  • Insulation continuity
  • Minimal air leakage
  • Elimination of cavity condensation and cold bridging

Applications

Composite cladding can be used in a wide variety of applications including:

  • Domestic Buildings including Houses, Sheds and Garages
  • Warehouses
  • Industrial and Commercial units
  • Schools
  • Agricultural units
  • Equestrian buildings
Please ensure that you are ordering the correct profile, this product is non standard and manufactured to order so therefore cannot be returned if ordered incorrectly.

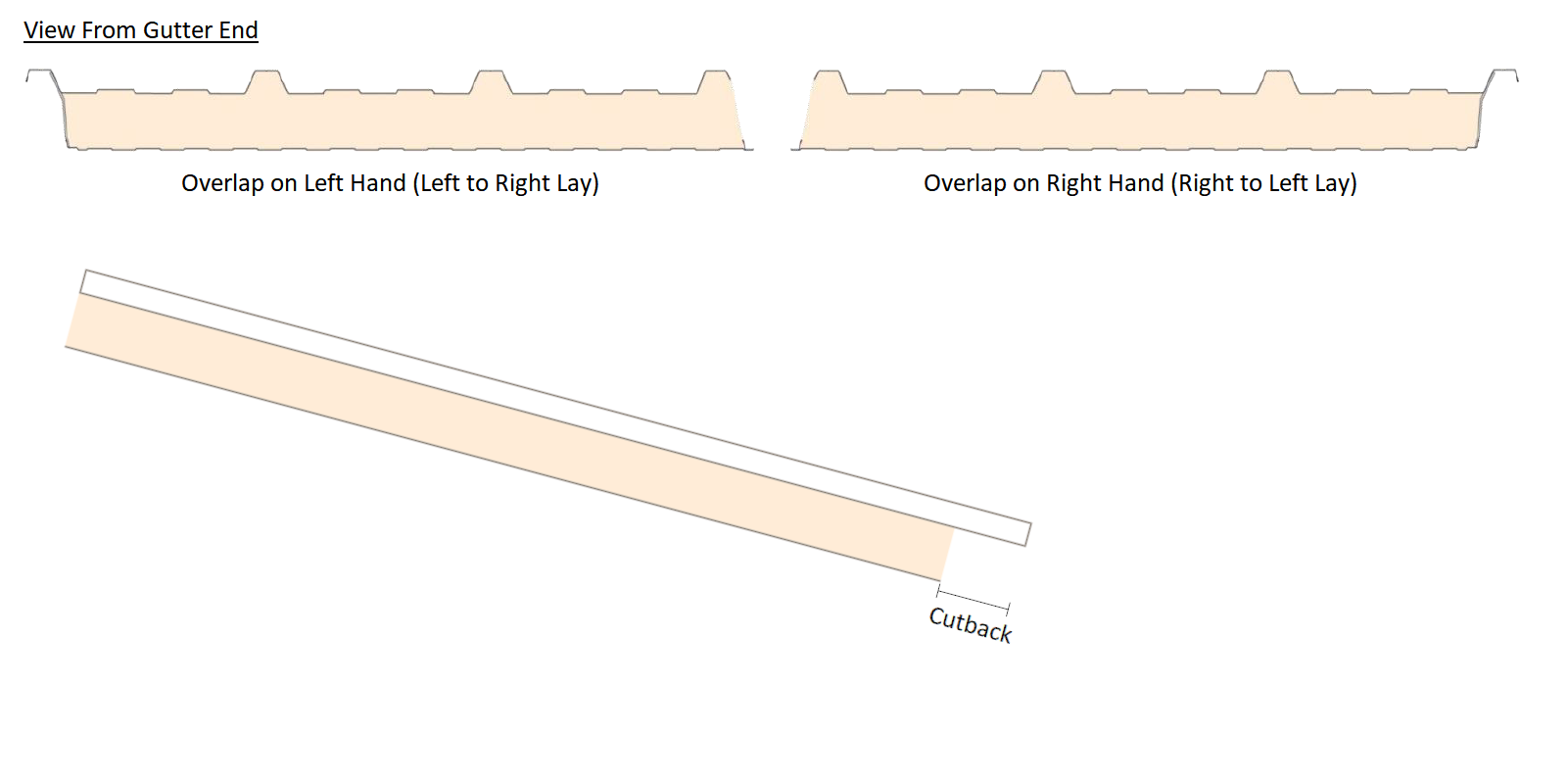

overlap and cutback details

Download Kingspan KS1000RW data sheet

XL Forte Standard Colour Range

200µ PVC Leathergrain Finish

No minimum order - Standard lead time (approx 2 to 4 weeks)

white grey white cream willow green
White
BS: 00E55
RAL: 9003
Grey White
BS: n/a
RAL: 9002
Cream
BS: 10C31
RAL: 1015
Willow Green
BS: 12B17
RAL: 100 80 20
khaki green olive green juniper green gull grey
Khaki Green
BS: 12B21
RAL: 100 60 20
Olive Green
BS: 12B27
RAL: 100 30 20
Juniper Green
BS: 12B29
RAL: 160 20 10
Gull Grey
BS: 18B17
RAL: 240 80 05
goosewing grey merlin grey anthracite azure blue
Goosewing Grey
BS: 10A05
RAL: 080 70 05
Merlin Grey
BS: 18B25
RAL: 180 40 05
Anthracite
BS: n/a
RAL: 7016
Azure Blue
BS: 18C39
RAL: 220 30 25
midnight slate blue russet red red brown
Midnight
BS: n/a
RAL: 5008
Slate Blue
BS: 18B29
RAL: n/a
Russet Red
BS: 04D44
RAL: 3013
Red Brown
BS: n/a
RAL: 8012
vandyke brown black
Vandyke Brown
BS: 08B29
RAL: 8014
Black
BS: 00E53
RAL: 9005

XL Forte Extended Colour Range

200µ PVC Leathergrain Finish

No minimum order - Extended lead time (allow up to 10 weeks)

mushroom leaf green bottle green cornflower blue
Mushroom
BS: 10B19
RAL: 080 70 10
Leaf Green
BS: n/a
RAL: 6002
Bottle Green
BS: n/a
RAL: 6007
Cornflower Blue
BS: 18E53
RAL: n/a
sapphire blue copper beech
Sapphire Blue
BS: n/a
RAL: 5003
Copper Beech
BS: 04C39
RAL: 040 40 40

XL Forte Non Standard Colour Range

200µ PVC Leathergrain Finish

Minimum order is usually 3800m - Extended lead time (call to check)

sunflower yellow saffron yellow cinnamon jade
Sunflower Yellow
BS: 10E55
RAL: n/a
Saffron Yellow
BS: 08E53
RAL: n/a
Cinnamon
BS: 08C35
RAL: 080 70 30
Jade
BS: 14C37
RAL: n/a
pastel blue powder blue denim deep blue
Pastel Blue
BS: n/a
RAL: 240 80 10
Powder Blue
BS: n/a
RAL: 210 80 10
Denim
BS: n/a
RAL: 5014
Deep Blue
BS: n/a
RAL: 260 240 20
wedgewood blue flame red shiraz autumn
Wedgewood Blue
BS: 18C37
RAL: 220 50 15
Flame Red
BS: 04E53
RAL: n/a
Shiraz
BS: n/a
RAL: 3004
Autumn
BS: n/a
RAL:

Spectrum Standard Colour Range

60µ Smooth Polyurethane Finish

No minimum order - Standard lead time (approx 2 to 4 weeks)

pearl moonstone basalt onyx
Pearl
BS: n/a
RAL: 9010
Moonstone
BS: n/a
RAL: 7035
Basalt
BS: n/a
RAL: 7012
Onyx
BS: n/a
RAL: 7016
metallic silver
Metallic Silver
BS: n/a
RAL: 9006
Special colours are available on request and are subject to minimum orders. Please contact us with your RAL or BS colour reference to discuss the options available to you in more detail.
7 digit RAL reference are RAL Design references
Disclaimer:
All colours and finishes shown are web representations. Although we make every effort to show our products in their original colours, due to photography and individual monitors, actual colours may vary. BS and RAL colour references represent the nearest colours and are not an exact match to the colour coating. Metal finishes are not colours they are the natural colour of the material which can vary, images shown are representative as colour coatings and metal finishes can differ from batch to batch.

Kingspan Insulated Panels QuadCore™ RW Trapezoidal Roof Panel

Applications

The KS1000 RW is a through-fix trapezoidal profiled insulated roof panel which can be used for building applications with roof pitches of 4° or more after deflection.

Available Lengths

Standard Lengths 1.8 – 14.5m
Longer Lengths (non- standard) 14.5 – 29.3m
Shorter Lengths (non- standard) Below 1.8m
Note: Additional costs and transport restrictions may apply for non-standard lengths. All lengths may change for export (outside of the UK).

Dimensions, Weight & Thermal Performance

Core Thickness (mm) 40 53 60 73 80 91 100 115 120 137 150
Overall Thickness (mm) 71 84 91 104 111 122 131 146 151 168 181
U-value (W/m²K) 0.47 0.35 0.31 0.25 0.23 0.20 0.18 0.16 0.15 0.13 0.12
Weight kg/m² 0.5/0.4 Steel 9.8 10.4 10.6 11.2 11.4 11.9 12.2 12.8 13.0 13.7 14.2
Weight kg/m² 0.7/0.5 Alum 5.5 6.0 6.3 6.8 7.1 7.6 7.9 8.5 8.7 9.4 9.9

The KS1000 RW insulated wall panels have a Thermal Transmittance (U value), calculated using the method required by the Building Regulations Part L2 (England & Wales) and Building Standards Section 6 (Scotland).

Insulation Core

KS1000 RW insulated roof panels are manufactured with an HCFC, CFC and HFC free QuadCore insulation core.

Fire

The external and internal faces of the panel to be Class 0 in accordance with the Building Regulations when tested to BS 476: Part 6: 2009 and Part 7: 1997.

This QuadCore hybrid insulation core system has passed all the requirements of:
• LPS1181: 2014: Part 1: Issue 1.2, series of fire growth tests for LPCB approval and is certified to LPS 1181 Grade EXT-B.
• FM approval to FMRC 4880 & 4481 Class 1 fire classification, unlimited height.
• FM 4882 for smoke sensitive occupancy: Class 1 for interior ceiling, unlimited height.
• Reaction to fire classification according to BS EN 13501–1:2007+A1:2009: B-s1,d0.

Environmental

Kingspan Insulated Panels produced in the UK are certified to BES 6001 (Framework Standard for the Responsible Sourcing of Construction Products) ‘Very Good’. Kingspan Insulated Panels directly contribute to BREEAM/LEED credits.

Air Leakage

An air leakage rate of 3m3/hr/m2 at 50Pa or less can be achieved when using Kingspan insulated roof and wall panels.

Acoustic

Sound Reduction Index (SRI)

Hz* 63 125 250 500 1K 2K 4K 8K
SRI (dB) 20 18 20 24 20 29 39 47

* Frequency The KS1000 RW insulated roof panel has a single figure weighted sound reduction Rw = 25dB.

Biological

Kingspan panels are normally immune to attack from mould, fungi, mildew and vermin. No urea formaldehyde is used in the construction, and the panels are not considered deleterious

Materials

Substrate

▪ Kingspan XL Forté, Kingspan Spectrum, Kingspan AQUAsafe, Kingspan AQUAsafe55 and Kingspan CLEANsafe: Metallic protected steel to BS EN 10346:2015.thickness 0.5mm. CLEANsafe 15: Metallic protected steel to BS EN10346:2015.thickness 0.4mm
▪ Stainless Steel: Austenitic Grade 316 stainless steel to BS EN 10088: Part 2: 2014, thickness 0.4mm.
▪ Aluminium: Please contact Kingspan envirocare Technical Services.

Coatings - External Weather Sheet

▪ Kingspan XL Forté: Consists of a multi-layer organic coating, embossed with a traditional leather-grain finish.
▪ Kingspan Spectrum: Consists of a coated semi- gloss finish with slight granular effect.

Coatings - Internal Liner Sheet

▪ Kingspan CLEANsafe 15: The coating has been developed for use as the internal lining of insulated panels. Standard colour is “bright white” with an easily cleaned surface.
▪ Kingspan AQUAsafe: The coating has been developed for use as the internal lining of insulated panels to suit high humidity internal environments.
▪ Kingspan AQUAsafe 55: The coating has been developed for use as the internal lining of insulated panels to swimming pool internal environments.
▪ Kingspan CLEANsafe 120: The coating has been developed for use as the internal lining of insulated panels where a high level of cleanliness and hygiene is required, and the panels are to be cleaned down on a regular basis.
▪ Stainless Steel: The stainless steel liner has been developed for use as the internal lining of insulated panels in buildings with a very aggressive/corrosive internal environment.

Panel End Cut Back

Standard Cut Back Eaves 75mm
Standard Cut Back Endlap 150mm
Class A Endlap 75mm
Minimum Cut Back 20mm
Maximum Cut Back 300mm

Product Tolerance

Cut to Length -5mm +5mm
Cover Width -2mm +2mm
Thickness -2mm +2mm
End Square -3mm +3mm

Handing

The KS1000 RW insulated roof panel can be manufactured in both left to right handed (LH) and right to left handed (RH).

Seals

Factory applied side & end lap weather seals.

Quality & Durability

KS1000 RW insulated roof panels are manufactured from the highest quality materials, using state of the art production equipment to rigorous quality control standards, complying with BS EN ISO 9001 standard, ensuring long term reliability and service life. The panels are also being manufactured under Environmental Management System Certification BS EN ISO 14001. Compliant to BS OHSAS 18001 Occupational Health and Safety. The KS1000RW roof panels are CE marked to BS EN 14509: 2013.

Guarantee

Kingspan Total Panel Guarantee covering the structural and thermal performance for a period of up to 40 years and Kingspan Coating Guarantee for a period of up to 40 years (subject to project specific information).

Packing

KS1000 RW insulated roof panels are stacked weather sheet to weather sheet (to minimise pack height). The top, bottom, sides and ends are protected with foam and timber packing and the entire pack is wrapped in plastic.

Core Thickness (mm) 40 53 60 73- 80 91 100-120 137-150
No. of panels in Pack 17 15 13 11 9 7 6

Note: Applies to UK pack sizes. Please contact Kingspan Technical Services for export information.

Sea Freight

Fully timber crated packs are available on projects requiring delivery by sea freight shipping, at additional costs. Alternatively, steel containers can be used. Special loading charges apply.

Delivery

All deliveries (unless indicated otherwise) are by road transport to project site. Off-loading is the responsibility of the client.

Site Installation Procedure

Site assembly instructions are available from Kingspan Technical Services.
