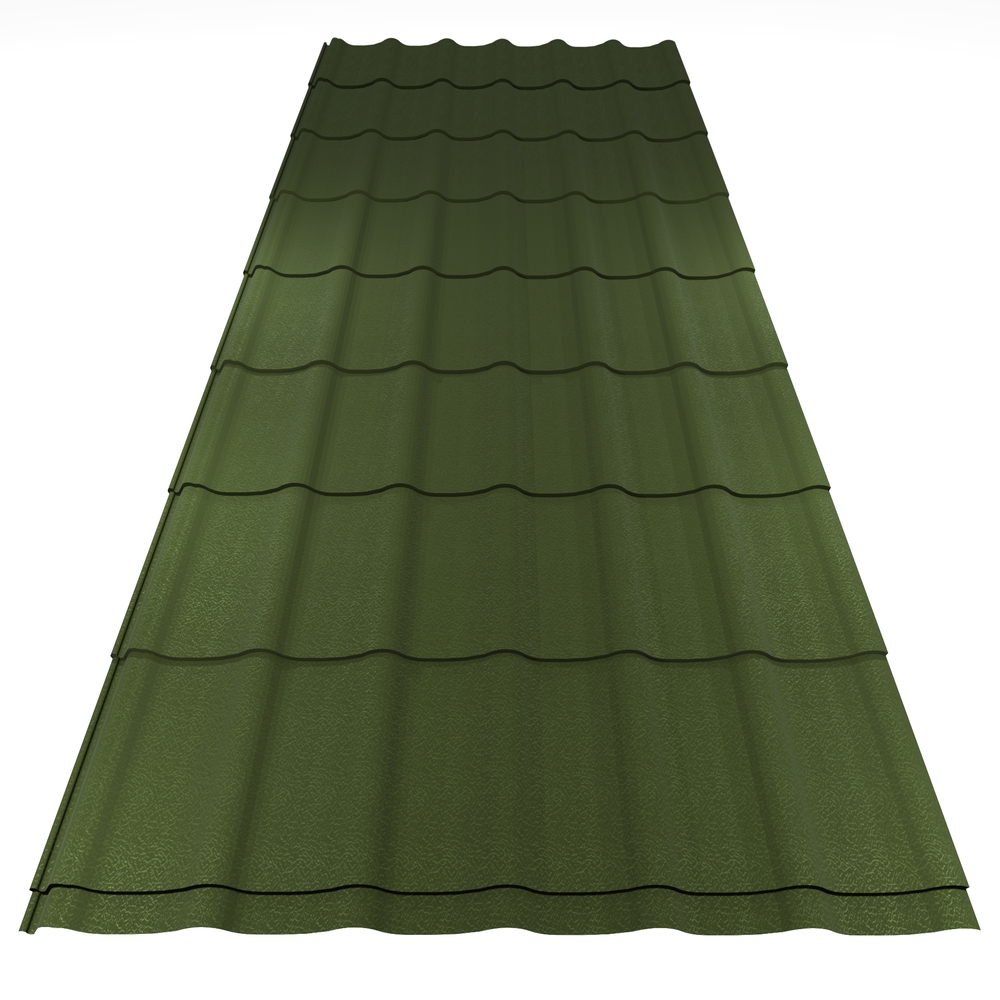

Accord WaveTile Steel Tile Effect Roof Sheet

Click an image to enlarge.

Pagoda at Paultons Park by Andy Thornton Ltd

View in 3D

WaveTile steel roof sheets
PVC Plastisol coated galvanised steel

To order online or obtain a quotation please specify your requirements below:

Colour

Finish

Number of sheets	Sheet length (m)

Unsure about your sheet sizes? You can enter your roof dimensions into our online quote calculator or contact us

Sorry you can not order online as JavaScript is not enabled in your browser.

Additional information

Please select a tab below for further information:

Pricing

Product description	Unit of Measure	Unit Price
Accord Wavetile 0.5mm Plastisol 1100mm Cover (Standard Colours)	LM	£21.63+VAT (£25.96 inc VAT)
Accord Wavetile 0.5mm Plastisol 1100mm Cover Anthracite/Terracotta	LM	£25.70+VAT (£30.84 inc VAT)

(Prices do not include delivery)

Accord WaveTile steel roof sheets are lightweight and simple to fit making it an ideal product for over roofing and flat to pitch roof conversions.

Maintenance free and aesthetically appealing, Accord WaveTile is an ideal product for schools, hospitals and other public buildings.

Due to it's 1100mm cover width Accord WaveTile is used in the construction of static homes and caravans by a majority of the leading UK manufacturers.

For this reason Accord WaveTile is an excellent choice for replacing existing roofing on static caravans.

Profile: Accord WaveTile

Purlin centres* 0.690m (two full tiles)

Min recommended roof pitch 14°

Cover width: 1100mm

Profile height: 24mm

Pitch: 183.5mm

Available gauges: 0.5mm only

Cut to size (maximum length 5m)

Approx lead time: 10 to 15 working days

* Initial purlin support must be positioned at the first tile drop from the ridge. Every other purlin must be positioned at every second tile drop. Due to this we recommend that you do not install your purlins until the sheets are on site. Recommendations are for guidance only and may differ depending on building scenario. Always consult a structural engineer for accurate structural support information.

Please be aware that tile effect sheets can only be manufactured in 0.5mm gauge and must be handled very carefully to avoid twisting and warping of the sheet when installing. A minimum of two people must handle the sheet but more people would be preferable, especially if the sheets are longer than 3m. Alternatively sterling board could be used to keep the sheet supported whilst handling. When fitting sheets please ensure you spread your weight using crawling boards.

Colours


Goosewing Grey BS: 10A05 RAL:7038	Juniper Green BS: 12B29 RAL: n/a	Merlin Grey BS: 18B25 RAL: 1804005	Olive Green BS: 12B27 RAL: 1003020

Slate Blue (Raven) BS: 18B29 RAL: n/a	Tile Grey BS: n/a RAL: n/a	Terracotta (Copper Beech) BS: 04C39 RAL: 8004	Vandyke Brown BS: 08B29 RAL: 8014

Special colours are available on request and are subject to minimum orders. Please contact us with your RAL or BS colour reference to discuss the options available to you in more detail.

7 digit RAL reference are RAL Design references

Disclaimer: All colours and finishes shown are web representations. Although we make every effort to show our products in their original colours, due to photography and individual monitors, actual colours may vary. BS and RAL colour references represent the nearest colours and are not an exact match to the colour coating. Metal finishes are not colours they are the natural colour of the material which can vary, images shown are representative as colour coatings and metal finishes can differ from batch to batch.

Finish data

PVC Plastisol coated sheeting is a very high quality galvanised steel sheet with a primer paint and final layer of PVC Plastisol coating resulting in a very durable end product that doesn't fade or scratch easily.

200µm durable, abrasion-resistant topcoat

Leathergrain embossed finish

Wide colour range

Galvanised substrate to BS EN 10346:2009 and primed undercoat offering excellent corrosion resistance

Manufacturers coating guarantee of up to 25 years to first maintenance*

*20 years for coastal areas (some colours 10 to 15 years see colours tab for more details) Coating warranty needs to be applied for at point of order.

Typical properties

Finish property	Unit of measure	Value	Test standard
Nominal organic coating thickness	(µm)	200	EN13523-1
Gloss (60°)	(%)	15-35	EN13523-2
Scratch resistance	(g)	3500	EN13523-12
Abrasion resistance (Taber, 250 rev, 1kg)	(mg)	<12	EN13523-16
Flexibility (reverse impact)	(J)	≥18	EN13523-5
Adhesion (cross hatch)	(%)	100 Pass	EN13523-6
Minimum bend radius	(T)	0 T@16°C	EN13523-7
Corrosion resistance: Salt Spray Humidity	(h) (h)	1000 1000	EN13523-8 EN13523-25
Max continuous operating temp.	(°C)	60
Reaction to fire		Class 0	BS476 part 6 & 7
Resistance to fire		Class AA	BS476 part 3
		C-s3,d0 roof and wall	BS EN 13501
External Fire Performance		Broof T4,T3,T2,T1	BS EN 13501
