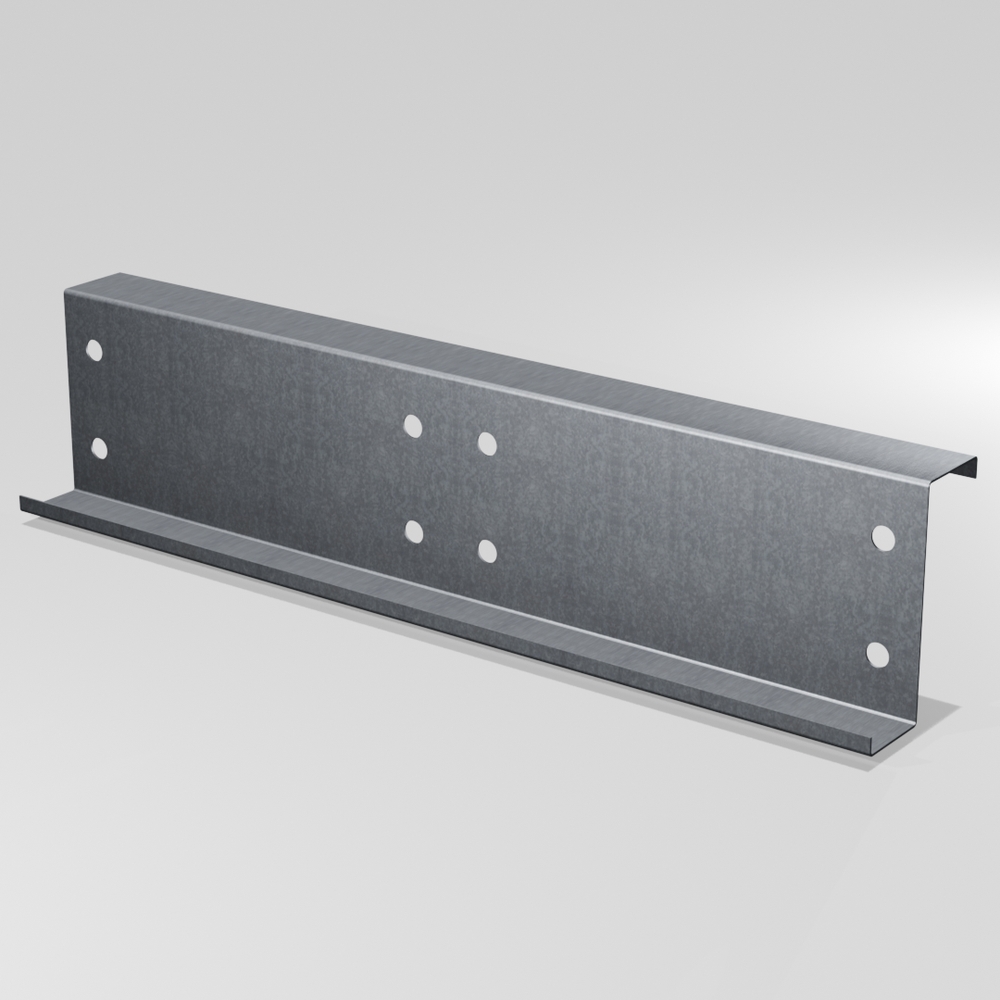

Z-Purlin Sleeves
Z-Purlin Sleeves
Options
Unsure of your requirements? Give our sales team a call on 01384 273 811 for assistance.
Product Details
Z Purlin Sleeves – Structural Joiners for Multi-Bay Roof Systems
Our Z Purlin Sleeves are designed to join Z-purlins across multi-bay steel buildings, providing a cost-effective and structurally sound solution for single and double span applications. Each sleeve is 800mm long and features pre-punched 18mm diameter holes to align with Accord Z-purlins and cleats.
Product Specifications
- Length: 800mm
- Heights Available: 145mm, 175mm, 200mm
- Material Thickness: 1.6mm, 1.8mm, 2.0mm
- Hole Size: 18mm diameter (pre-punched)
- Finish: Galvanised steel
- Compatibility: Accord Z-purlins and cleats
Key Features
- Allows secure joining of Z-purlins in multi-bay buildings
- Suitable for single and double span roof systems
- Pre-punched holes for fast alignment and fixing
- Must be installed over a support for structural integrity
- Available in multiple heights and gauges to suit design loads
Applications
- Steel-framed agricultural and industrial buildings
- Multi-bay roof structures
- Retrofit and extension projects
- Modular and offsite construction
Z Purlin Sleeves are essential for spanning and joining roof members in multi-bay designs. Contact us to confirm sleeve size, gauge, and compatibility—or to request a drawing showing hole layout and fixing points.
Pricing
| Description | Price |
|---|---|
| 800mm Z-Purlin Sleeve 200mm 2.0mm gauge - Galvanised | £13.22 (£11.02+VAT) |
| 800mm Z-Purlin Sleeve 175mm 2.0mm gauge - Galvanised | £12.56 (£10.47+VAT) |
| 800mm Z-Purlin Sleeve 140mm 2.0mm gauge - Galvanised | £12.01 (£10.01+VAT) |
| 800mm Z-Purlin Sleeve 175mm 1.6mm gauge - Galvanised | £9.90 (£8.25+VAT) |
| 800mm Z-Purlin Sleeve 175mm 1.8mm gauge - Galvanised | £11.09 (£9.24+VAT) |
| 800mm Z-Purlin Sleeve 200mm 1.6mm gauge - Galvanised | £10.34 (£8.62+VAT) |
| 800mm Z-Purlin Sleeve 200mm 1.8mm gauge - Galvanised | £11.68 (£9.73+VAT) |
| 800mm Z-Purlin Sleeve 140mm 1.6mm gauge - Galvanised | £9.60 (£8.00+VAT) |
| 800mm Z-Purlin Sleeve 140mm 1.8mm gauge - Galvanised | £10.79 (£8.99+VAT) |
(Prices are excluding VAT, delivery & applicable fees, unless otherwise stated.)
